Smart SoC

Based on years of experience in motor control, Spintrol Technology has developed a variety of high-performance chips with different integration levels for motor control applications, including controller CPU, system on chip with integrated high voltage driver and fully integrated system on chip.

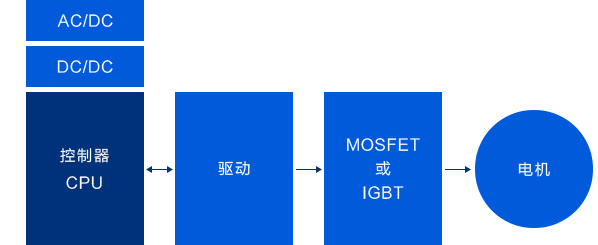

Controller CPU

Spintrol Technology controller CPU has the characteristics of high performance and high integration. It incorporates ARM Cortex M3 and M4 cores with up to 200MHz main frequency, fast and high-precision ADC, programmable gain amplifier, enhanced PWM, timers and rich communication interfaces. These features make it ideal for motor control applications.

Product Name
CPU Core
CPU Maximum Frequency
ADC Accuracy (Bits)
Programmable gain
op amp (way)
Comparator (pair)
PWM channel (channel)
Package
Working junction
temperature (℃)
SPC1068 M3 150 12 3 3 14 LQFP48 -40 ~ 105
SPC1068L M3 100 12 3 3 14 LQFP48 -40 ~ 105
SPC1158 M4 100 14 3 5 8/11 LQFP48,QFN32 -40 ~ 125
SPC1168 M4 200 14 3 5 12 LQFP48 -40 ~ 125
SPC1198 M4 200 14 6 8 16 LQFP80, QFN52 -40 ~ 125
SPC2168 M4 * 2 200 14 6 8 16 LQFP80 -40 ~ 125

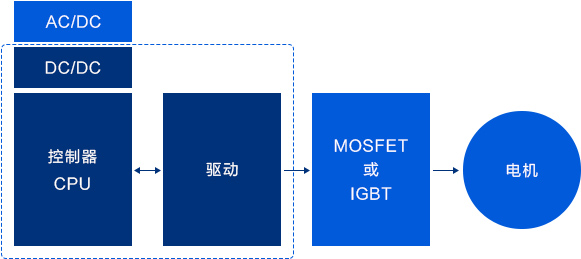

System on chip with high voltage driver

Based on controller CPU, integrate pre-driver and power management to improve integration and simplify customer’s application design.

Product Name
CPU Core
CPU Maximum Frequency
ADC Accuracy (Bits)
Programmable gain
op amp (way)
Comparator (pair)
PWM channel (channel)
Pre-driver
Power
Package
Working junction
temperature (℃)
SPD1078 M3 150 12 3 3 6 60V / 2A Single 8~60V QFN64 -40 ~ 105
SPD1148 M4 200 14 3 5 6 42V / 1A + 1.3A Single 5.5-42v QFN48 -40 ~ 125
SPD1178 M4 200 14 3 5 12 (60V / 1A+ 1.3A) * 2 MCU: 3.3V
Pre-driver: 8 ~ 60V
QFN64 -40 ~ 125
SPD1188 M4 200 14 3 5 6 96V / 2A Single 8 ~ 96V QFN56 -40 ~ 125

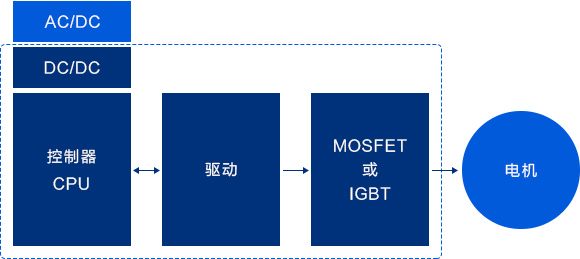

Full integrated system on chip

Based on system chip with high voltage driver, further integrate power Mosfet to simplify customer’s application design.
