SPD1078

Product Introduction

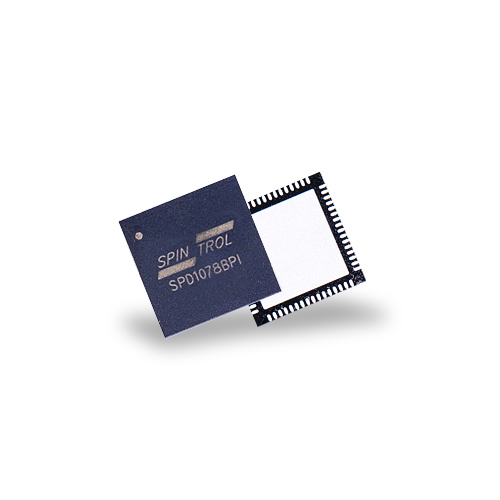

SPD1078 is a SiP (System in a Package) device integrating MCU, Pre-Driver module and power management module. The MCU incorporates a 32-bit ARM Cortex M3 core with a software-programmable clock rate as high as 150 MHz, 48 KB CODE/SRAM, in-package flash with 512 KB, and an extensive range of enhanced I/Os and peripherals. The device offers a 12-bit ADC, three PGAs, seven enhanced PWMs, three general purpose 32-bit timers, as well as standard and advanced communication interface. The Pre-Driver module provides three half-bridge pre-drivers, with programmable charging/discharging current capability up to 2A. Integrated Charge Pump will help to support 100% Duty Cycle. The Power management module includes a 60V Max input, 3.3V 600mA output synchronous buck, 50mA LDO with output from 9 ~ 18V programmable and Brown-out-Detection for each of the power level.

To apply for sample

Specification Table

SpecificationSPD1078
CPU CoreM3
Maxim Frequency (MHz)150
Flash Maxim Size (KB)512
SRAM Maxim Size (KB)48
ADC Resolution (Bit)12
ADC Channel7
ADC sample and hold circuit (ch)2
Programmable gain amplifier (ch)3
Comparator (pair)3
PWM (ch)6
PWM channel (externally available)8
I2C1
SPI1
UART1
Programmable IO Module (1)1
Package60V / 2A
PowerSingle 8~60V
PackageQFN64
Operating junction temperature (℃)-40 ~ 105
(1) It has programmable capability which can convert the module into pre-defined communication module, such as CAN, LIN, SCI, SPI, QEP, etc.
