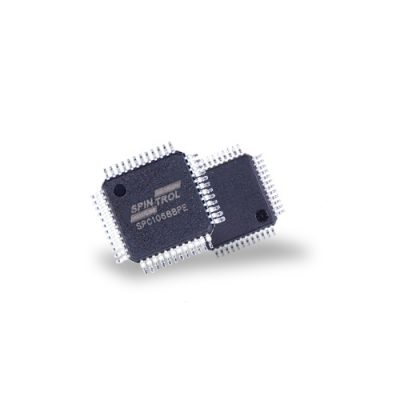

SPC1068

Product Introduction

SPC1068 is a highly integrated system-on-chip (SoC) microcontroller. The SPC1068 incorporates a 32-bit ARM Cortex-M3 high-performance processor with a software-programmable clock rate as high as 150 MHz, 48 KB CODE/SRAM, in-package flash with 512 KB, and an extensive range of enhanced I/Os and peripherals. The device offers a 12-bit ADC, three PGAs, seven enhanced PWMs, three general purpose 32-bit timers, as well as standard and advanced communication interface: an UART, an I2C and a SPI. These features make the SPC1068 ideal for motor control application.

To apply for sample

Specification Table

SpecificationSPC1068
CPU CoreM3
Maxim Frequency (MHz)150
Flash Maxim Size (KB)512
SRAM Maxim Size (KB)48
ADC Resolution (Bit)12
ADC Channel16
ADC sample and hold circuit (ch)2
Programmable gain amplifier (ch)3
Comparator (pair)3
PWM (ch)14
I2C1
SPI1
UART1
Programmable IO Module (1)/
PackageLQFP48
Operating junction temperature (℃)-40 ~ 105
(1) It has programmable capability which can convert the module into pre-defined communication module, such as CAN, LIN, SCI, SPI, QEP, etc.

Download Datasheet

FileName
FileSize
UploadTime
Operate
SPC1068_datasheet
477
2022-01-13
[中文] Spintrol软件调试指南.pdf
8058
2022-01-26
SPC11x8_SPD11x8 SIO 使用指南.zip
3897
2022-03-07
SPC11x8_SPD11x8 Application note.zip
8310
2022-03-07
[EN] SPC11x8_SPD11x8_Programming_Specifications.pdf
1463
2022-01-26
ISP工具使用指南.pdf
528
2022-01-26
[视频] 旋智烧录器操作指南
外链
2022-01-14
Mass_production_programming_tool_user_manual.docx
7411
2022-05-09
[视频] 旋智 SoC 快速入门之下载和调试程序 Spintrol SoC quick start guide
外链
2022-06-24
RC-032_SPD11xx系列芯片失效分析指南.pdf
745
2022-09-16
RC-032_SPC11XX系列环境调试指南.pdf
8057
2022-09-16
RC-032_SPC11x8_SPD11x8 WDT单元使用指南.pdf
521
2022-09-16
RC-032_SPC11x8_SPD11x8 UART单元使用指南.pdf
1774
2022-09-16
RC-032_SPC11x8_SPD11x8 UART单元不定长数据接收.pdf
552
2022-09-16
