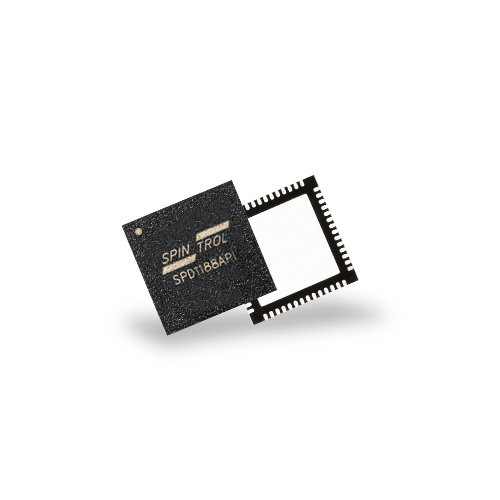

SPD1188

Product Introduction

SPD1188 is a SiP (System in a Package) device integrating MCU, Pre-Driver module and power management module, targeting for BLDC driving application with supply voltage up to 96V. The MCU incorporates a 32-bit ARM Cortex-M4 with clock rate as high as 200 MHz, 64 KB SRAM, embedded flash with 128 KB, and an extensive range of enhanced I/Os and peripherals. The device offers a 14-bit ADC, six PGAs, six enhanced PWMs, three general purpose 32-bit timers, as well as standard and advanced communication interface. The Pre-Driver module provides three half-bridge pre-drivers, with programmable charging/discharging current capability up to 2A. Integrated Charge Pump supports 100% duty cycle. The Power management module includes a 96V Max input, 12V 300mA output synchronous HV buck, a 12V input, 3.3V 500mA output synchronous LV buck, and Brown-out-Detection observing each of the power rail.

To apply for sample

Specification Table

SpecificationSPD1188
CPU CoreM4
Maxim Frequency (MHz)200
Flash Maxim Size (KB)128
SRAM Maxim Size (KB)64
ADC Resolution (Bit)14
ADC Channel14
ADC sample and hold circuit (ch)3
Programmable gain amplifier (ch)3
Comparator (pair)5
PWM (ch)6
PWM channel (externally available)6
I2C1
SPI1
UART1
Programmable IO Module (1)1
Package96V / 2A
PowerSingle 8 ~ 96V
PackageQFN56
Operating junction temperature (℃)-40 ~ 125
(1) It has programmable capability which can convert the module into pre-defined communication module, such as CAN, LIN, SCI, SPI, QEP, etc.

Download Datasheet

FileName
FileSize
UploadTime
Operate
SPD1188_Datasheet.pdf
1843
2022-01-13
[中文] Spintrol软件调试指南.pdf
8058
2022-01-26
SPC11x8_SPD11x8 SIO 使用指南.zip
3897
2022-03-07
SPC11x8_SPD11x8 Application note.zip
8310
2022-03-07
[EN] SPC11x8_SPD11x8_Programming_Specifications.pdf
1463
2022-01-26
ISP工具使用指南.pdf
528
2022-01-26
[视频] 旋智烧录器操作指南
外链
2022-01-14
Mass_production_programming_tool_user_manual.docx
7411
2022-05-09
[视频] 旋智 SoC 快速入门之下载和调试程序 Spintrol SoC quick start guide
外链
2022-06-24
RC-032_SPD11xx系列芯片失效分析指南.pdf
745
2022-09-16
RC-032_SPC11XX系列环境调试指南.pdf
8057
2022-09-16
RC-032_SPC11x8_SPD11x8 WDT单元使用指南.pdf
521
2022-09-16
RC-032_SPC11x8_SPD11x8 UART单元使用指南.pdf
1774
2022-09-16
RC-032_SPC11x8_SPD11x8 UART单元不定长数据接收.pdf
552
2022-09-16
