SPC2168

产品简介

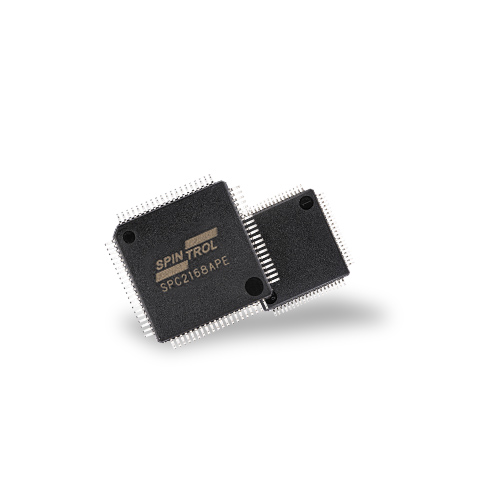

SPC2168 is based on an advanced mixed-signal architecture design, using two ARMs Cortex-M4 CPU cores, equipped with best-in-class analog front-ends, digital signal processing, and dedicated peripherals and security mechanisms for motion control. Both SPC2168 CPU cores can run complex control algorithms at clock frequencies up to 200MHz. The differential PGA and high-speed high-resolution ADC in the analog front end can accurately and quickly capture signals in noisy environments. These features make SPC2168 an ideal choice for complex motion control, improving energy efficiency and enhancing the user experience, while reducing system cost and bringing significant advantages to terminal applications. In addition, it also uses two innovative technologies, one is multi-region security protection technology to improve code security. The other is programmable IO technology, similar to FPGA, which can be configured into pre-defined communication module to support various application needs in a more cost-effective way.

申请样板

规格表

SpecificationSPC2168
CPU CoreM4 * 2
Maxim Frequency (MHz)200
Flash Maxim Size (KB)512
SRAM Maxim Size (KB)80
ADC Resolution (Bit)14
ADC Channel20
ADC sample and hold circuit (ch)3
Programmable gain amplifier (ch)6
Comparator (pair)8
PWM (ch)16
I2C1
SPI1
UART1
Programmable IO Module (1)3
PackageLQFP80
Operating junction temperature (℃)-40 ~ 125
(1) It has programmable capability which can convert the module into pre-defined communication module, such as CAN, LIN, SCI, SPI, QEP, etc.
